Preferences

Customize Procreate to suit your workflow. Adjust the look of the interface or mirror your canvas to a connected screen. Change your interface, tweak the Pressure Curve, and personalize Gesture Controls to suit your working style.

Interface Appearance

Tweak your Procreate interface to look the way you like.

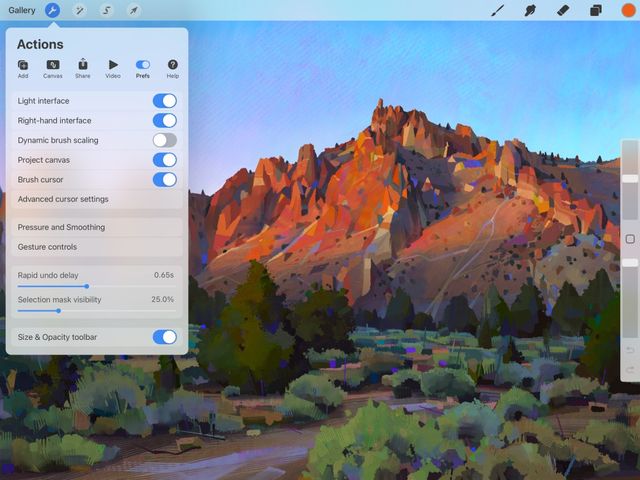

Go to Actions > Prefs to change the appearance and behavior of the Procreate interface. Do this using a series of easy-to-use toggles and sliders.

Interface Toggles

These interface options toggle between states.

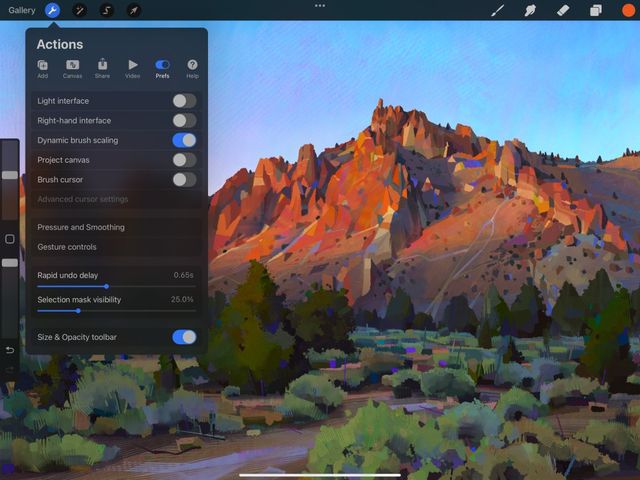

The Procreate interface offers two visual modes. Dark Mode is an unobtrusive charcoal interface that keeps the focus on your artwork. Light Mode is ideal for higher contrast when you’re working in bright environments.

By default, the sidebar is on the left-hand side of the screen. Toggle the Right-hand interface switch to move it to the other side of your canvas.

By default Procreate dynamically scales brushes as you zoom in and out of a 2D or 3D canvas. This means your brush maintains the same pixel size no matter how far in or out you zoom on you canvas.

If you would like your brush size to not alter in relation to your zoom, toggle Dynamic brush scaling off. This means your brush will maintain its size relative to the screen. Your strokes will alter size dependent on how zoomed in or out you are to your canvas.

Connect a second display via cable or AirPlay and toggle Project Canvas. The second display will show your canvas only, full-screen - with no interface, zoom, or interruptions. This helps you work on fine details in Procreate while keeping an eye on the big picture.

When you switch the Brush Cursor on, the outline of your Brush shape will appear when you touch the canvas. This is so you can see in advance the shape of the mark you’ll make.

The Advanced cursor settings control the appearance of your cursor when painting and using hover.

Brush cursor visibility

This setting turns on and off a visible cursor that can be set to Show while hovering, Show while painting or to Show both.

Brush outline style

This setting controls the style of the cursor outline. High contrast and Active color are settings that change the cursor outline universally across Procreate.

Select High Contrast to display a greyscale cursor outline that dynamically changes color dependent on the background color the cursor sits over. Select Active color to display the cursor outline in the Active Color selected.

Select Per brush to turn off the universal settings and activate the Cursor outline setting found in Brush Studio. Find out more about Cursor outline settings in the Apple Pencil section of Brush Studio Settings.

Interface Options

These interface options use sliders for fine adjustments.

One of Procreate’s most powerful shortcuts is the two-finger hold for Rapid Undo. Hold two fingers to the canvas, after a brief delay, Procreate will rapidly move back through Undo steps. This lets you quickly get rid of unwanted changes. This slider allows you to set the length of the delay before Rapid Undo activates, from no delay to 1.5 seconds.

When you commit a selection, it becomes a selection mask This shows you which areas of the canvas are masked (not selected). Masked areas look like moving diagonal shading and are semi-transparent by default. Adjusting the Selection mask visibility slider changes this transparency. This makes your Mask more or less solid. If you have an active selection mask while you adjust the slider, you'll see the change in real-time.

This toggle hides and shows the side sidebar for adjusting brush size and opacity. Toggle on to make the sidebar appear, and Toggle off to hide it.

Pencil and Touch Behavior

Adjust the way Procreate responds to your Apple Pencil and touch.

Two menu options in the middle of the Preferences panel control Procreate’s touch and pressure responses. You'll find these by tapping Actions > Prefs.

Pressure and Smoothing

Apply Stabilization, Motion Filtering, and tweak Procreate’s overall App Pressure Sensitivity to match input stability and sensitivity to the way you draw.

Stabilization and Motion Filter Settings

Stabilization and motion filtering can be applied globally as an accessibility feature in the Pressure and Smoothing settings of Procreate. These settings can help artists who experience tremors achieve smoother stroke-making in Procreate.

Access these settings by tapping Actions > Prefs > Pressure and Smoothing.

For a full explanation of how these settings work, check out Stroke Stabilization in the Accessibility section of Interface & Gestures in this handbook.

App Pressure Sensitivity

The Apple Pencil has a huge dynamic range. This means you have to press down very hard to reach 100% pressure or opacity. Artists who draw with a lighter touch might find they don't enjoy the full range of the Pencil’s sensitivity when using the default settings.

To get the most out of the Apple Pencil, use Procreate’s customizable App Pressure Sensitivity curve. Do this to adjust the feel of your Pencil or stylus to your liking.

Tap Pressure & Smoothing to access the App Pressure Sensitivity curve settings.

The default curve is a straight diagonal line. Drag this line to move it as a smooth curve, or tap to add up to six handles.

The horizontal (side-to-side) axis of the graph defines pressure. Positioning the curve further to the left means your Pencil will respond quicker to lighter pressure. Pushing the curve to the right means you will have to press the Pencil down harder to get a response.

The vertical (up and down) axis sets the value of the Pencil’s output. Maximum value (top) means the brush is producing 100% of its possible thickness or opacity. Moving toward the minimum value at the bottom means a thinner or more transparent stroke.

To remove a handle, tap it again to reveal the Delete and Reset options. To undo all your changes and return to the default curve, tap Reset.

To undo all your global settings in Pressure & Smoothing, scroll down and tap Reset all.

Gesture Controls

Modify and adjust Procreate’s array of gesture controls to work the way you prefer.

Tap Actions > Prefs > Gesture Controls to open the Gesture Controls panel. This panel gives you the ability to modify shortcuts for a variety of Procreate's tools.

Most shortcuts toggle on or off. You can set up multiple shortcuts for the same function. Or, deactivate all shortcuts from functions you rarely use. Where a shortcut triggers by touch-and-hold, use a slider to set the delay before that shortcut triggers.

You cannot assign the same shortcut to two different features. Activating a shortcut on one feature can cause a conflict with another feature that is

already using the same shortcut. If this is the case, a yellow warning icon will flash up next to the conflicting feature.

To learn how to perform any of the gestures listed below, scroll to the Gesture Glossary at the bottom of this page.

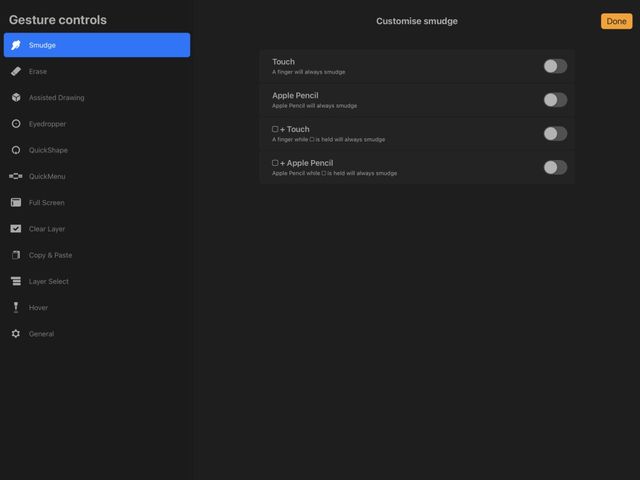

Painting Gestures

These three features affect the way you draw, paint, smudge, and erase on the canvas.

If any of these options are active, paint strokes made with that method will always smudge. This occurs no matter which tool is selected.

Learn more about Smudge .

If any of these options are active, paint strokes made with that method will always erase. This occurs no matter which tool is selected.

Learn more about Erase .

The Tap Modify button and Apple Pencil double-tap options will toggle Drawing Assist on the current layer.

If any other options are active and a Drawing Guide exists, paint, smudge, and erase strokes made with that method will always be Assisted. These will snap to the guide, even if the current layer is not Assisted.

Learn more about Drawing Assist .

Advanced Feature Gestures

It’s worth setting memorable shortcuts if you often sample color, draw perfect shapes, or quick-access multiple actions.

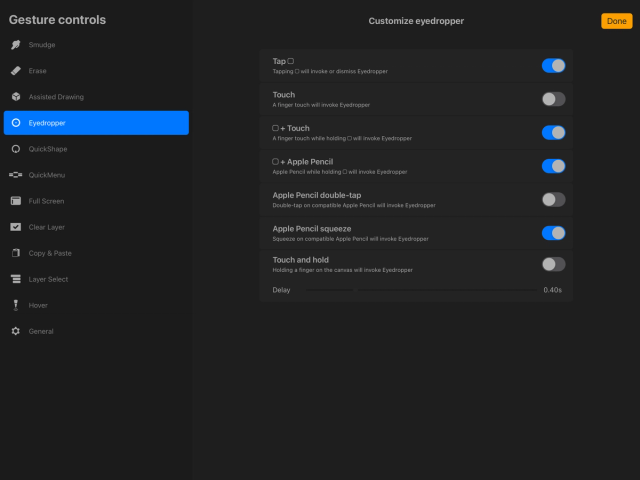

Choose your favorite method to invoke the Eyedropper. On Tap Modify Button or Apple Pencil, double-tap, or Apple Pencil Squeeze, the Eyedropper appears where you last marked the canvas. From there, drag it to the desired location on the canvas to select a color. With all methods, the Eyedropper will dismiss and an active color will be selected as soon as you lift your Pencil or finger from the canvas.

Learn more about Eyedropper .

Draw and Hold is the default method for QuickShape. Draw a stroke and keep your finger or pencil held to the canvas at the end to invoke QuickShape after a brief delay. All other methods invoke QuickShape on the last stroke you made before triggering the shortcut. Apple Pencil Pro users can customize their settings to trigger QuickShape with the squeeze function for a more gestural QuickShape experience. Squeeze once to trigger Quickshape, and squeeze a second time to invoke the perfect form of that shape.

To turn this feature on navigate to Actions > Prefs > Gesture Controls > QuickShape and toggle Apple Pencil squeeze on.

Learn more about QuickShape .

When you invoke QuickMenu, you can dismiss it by tapping off, continuing to paint, or selecting a QuickMenu option.

If you use Apple Pencil Pro you can assign QuickMenu to the squeeze function and then squeeze to invoke. Select a QuickMenu option or squeeze again to dismiss.

Learn more about QuickMenu .

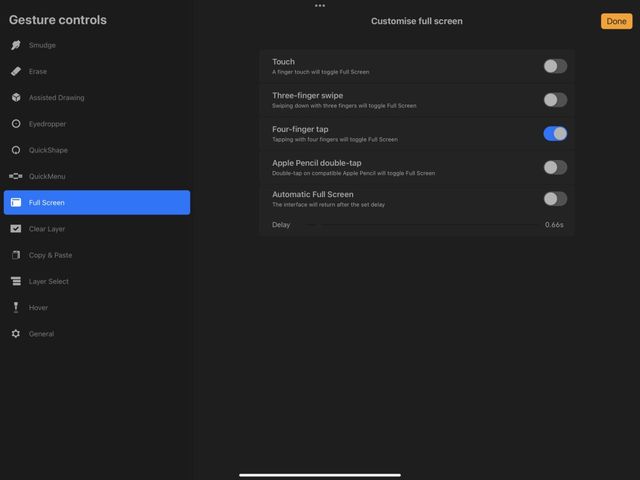

Full-Screen Gestures

Set up a simple shortcut to toggle Full Screen mode, or set it to invoke and dismiss automatically.

Toggle

The first four shortcuts in the list toggle Full Screen on and off. Trigger the action once, and it will invoke Full Screen. Trigger it again and it will dismiss Full Screen and return to the normal interface.

Automatic

If Automatic Full Screen is enabled, the interface automatically dismisses as you start painting. Once you lift off the canvas, the interface will return after the set delay. Drag the slider to the left to decrease this delay, or to the right to increase it.

Layer Content Gestures

Quickly clear, select, cut, copy, or paste content on your Layers.

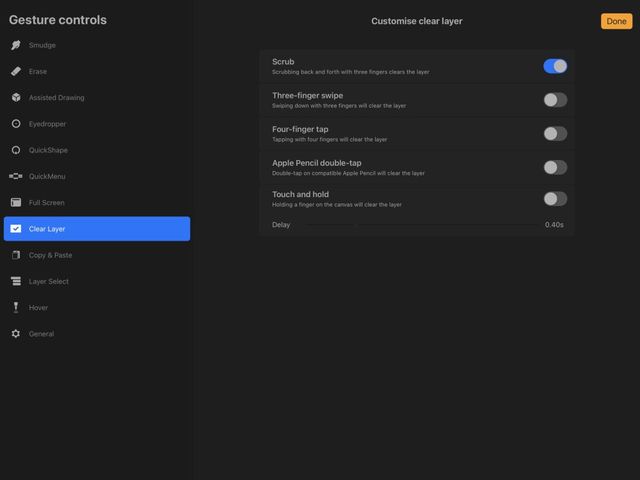

Choose the best method to clear your layer. Clear Layer will delete all the content from your current Primary layer. You can use Undo to reverse this action.

The Scrub gesture is the default Clear Layer shortcut. Clear Layer cannot be used to invoke any other feature.

You can also clear your layer from the Layer Options menu.

Learn more about Layers .

Select from a variety of options for invoking the Copy Paste menu. Once invoked, the Copy Paste menu remains until you tap the canvas or select a menu option.

Learn more about Copy Paste .

Quickly Select layers using touch or Apple Pencil Pro squeeze. The selected layer will appear with a highlight around it. If there are multiple layers on the canvas location, a pop-up menu will appear with layers available.

If you’ve chosen a touch gesture, invoke it, then hold and drag on the canvas toward one of the layers to select it. To activate the Layer Select pop-up menu, hold your finger on the location or tap it. The pop-up will expand to show all available layers visible in that location until you tap off or select a layer.

If you’ve chosen a squeeze gesture (Apple Pencil Pro required), hover over the layer and squeeze to select. You can select a different layer if you continue to squeeze and move around the canvas (Layer Select will deactivate after five seconds. If this happens, just squeeze again). To activate the layer select pop-up menu, squeeze and quickly release over a layer.

Learn more about Layers and Selections .

Learn more about Layers and Selections .

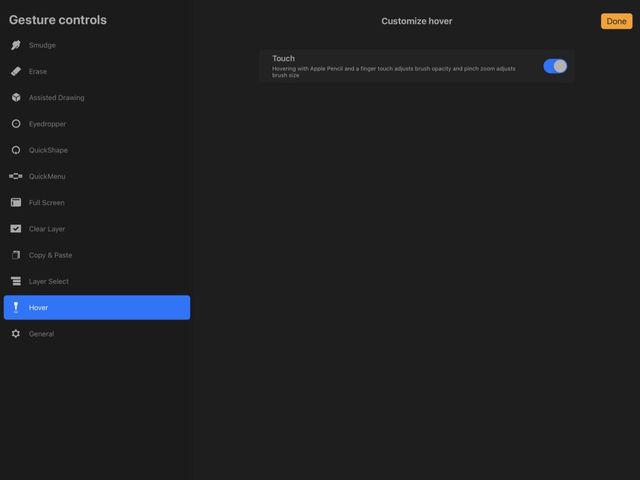

Hover

Turn on gesture controls associated with hover functionality.

This option turns on extra gesture controls when using Apple Pencil hover. Toggle on to adjust brush size with a pinch gesture, and adjust opacity with a finger slide gesture.

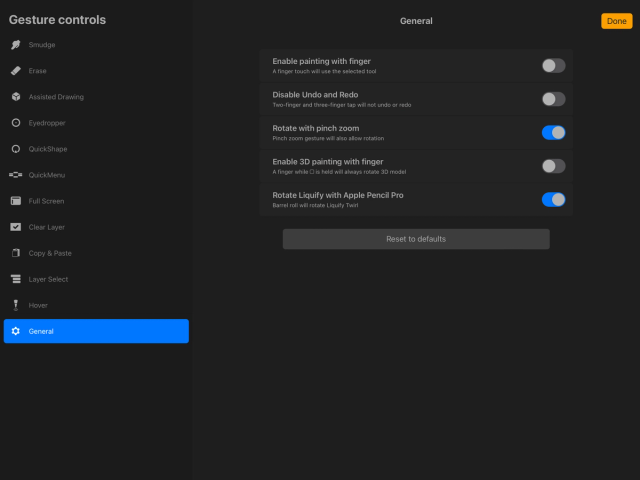

Gesture Options

Refine the way your gestures work with these general gesture controls.

Toggle on Disable Touch actions. From this point on, finger touches will only invoke gesture shortcuts. You will no longer be able to Paint, Smudge, Erase, or do anything other than use gesture shortcuts with your fingers.

This option switches off two-finger tap to Undo and three-finger tap to Redo.

This option controls whether the pinch-zoom gesture also allows rotation. It is on by default.

This option allows you to paint on 3D objects with your finger instead of an Apple Pencil. By default your finger is used to rotate 3D models. With this option enabled rotating requires holding down the square Modify Button while rotating with your finger.

When toggled on, you can use barrel roll to perform left and right twirl Liquify adjustments (Apple Pencil Pro required).

To dismiss the Gesture Control panel, tap Done to return to your canvas.

Gesture Glossary

Learn how to perform all the gestures available in Gesture Controls.

You should perform gestures on the canvas area of your screen unless otherwise specified. Multiple gestures can sometimes combine (for example, Hold Modify Button + Touch). All combinations are listed here.

Tap

An extremely brief touch with one finger.

Touch

Touch or draw with one finger.

Touch and Hold

Hold one finger down in place for a second or so.

Apple Pencil

Use the tip of the Apple Pencil to touch or draw on the canvas.

Apple Pencil double-tap

Quickly tap twice on the flat area on the side of the Apple Pencil (Second generation).

Tap Modify Button

Briefly touch the square button on the left-hand sidebar.

Hold Modify Button

Hold down the square button on the left-hand sidebar.

Modify Button + Apple Pencil

Hold down the square button on the left-hand sidebar while drawing on the canvas with the Apple Pencil.

Modify Button + Touch

Touch the canvas with one finger while holding down the square button on the left-hand sidebar with another finger.

Draw and Hold

Draw with a finger or pencil and hold at the end of the stroke to turn your hand-drawn shape into a perfect shape. (Gesture used for QuickShape only)

Scrub

Brush three fingers back and forth on the canvas to clear the layer. (Gesture used for Clear Layer only)

Three-finger Swipe

Brush downwards on the canvas with three fingers.

Four-finger Tap

Tap with four fingers at once.
