Organize

Move, Lock, Duplicate, and Delete layers. A touch or swipe puts all the most commonly used layer controls at your fingertips.

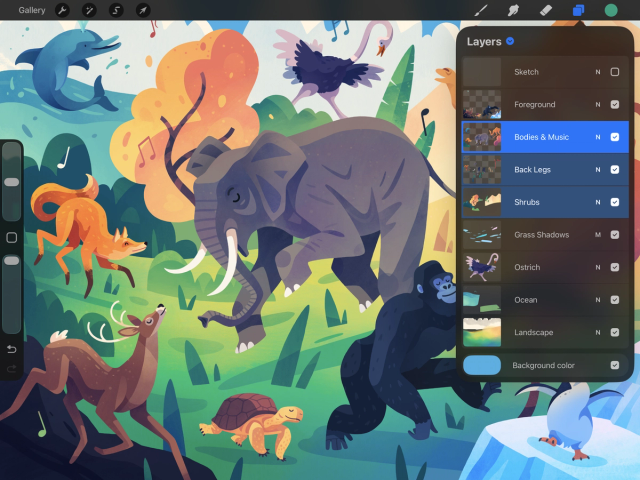

Select Layers

Control and edit multiple layers at once, perform bulk moving, grouping, deletion, or transformation. Procreate offers Primary and Secondary layer selection to give you finer control.

On the Layers panel, tap any layer to make it your Primary (active) layer.

Your Primary layer will appear in the Layer's panel as bright blue. You can only have one Primary layer at a time.

Any drawing or painting you do affects this Primary layer.

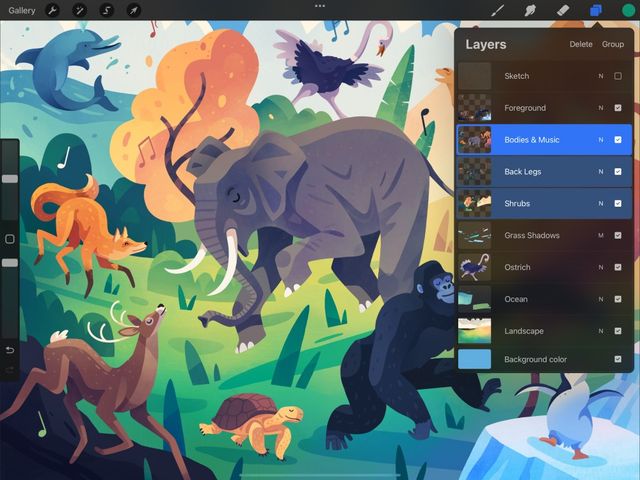

Swipe right on any layer to add it to your selection as a Secondary layer.

Your Secondary layers will appear in the Layer's panel as dark blue. While you can only have one Primary layer at a time, you can select as many Secondary layers as you like.

Drawing and painting will only appear on the Primary layer.

Using Selected Layers

Any Selection or Transformation actions will affect all selected layers.

It's important to note that you can't make Adjustments with multiple layers selected.

Cut and Copy actions only apply to your Primary layer.

Selecting Layers vs Selecting Contents

Procreate enables you to select entire layers (detailed above) or select all the pixels on a layer via the Layer Options Menu .

You can also select parts of a layer's contents using Selection Tools.

Explore these different approaches in greater detail in Selections .

Layer Select

Use this shortcut to select a specific layer by touching the content on the canvas without needing to use the Layers menu.

Layer Select uses touch to display all the layers associated with a specific area of the canvas.

With Layer Select turned on, layer-specific content will be highlighted as you move your finger or Pencil around the canvas. Lift your finger or Pencil to select a highlighted layer. The top bar will indicate that you have selected that specific layer.

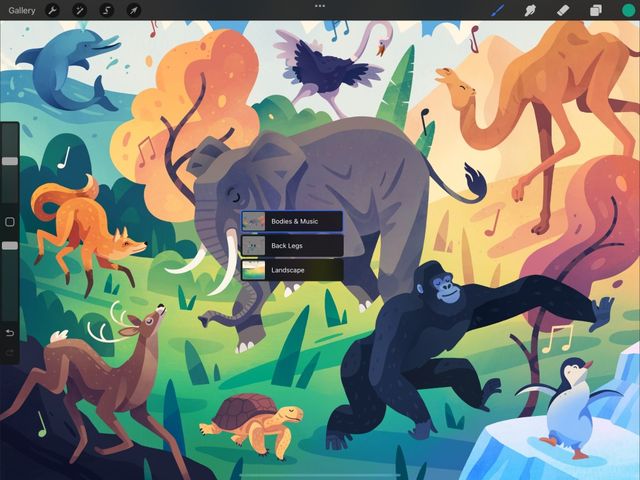

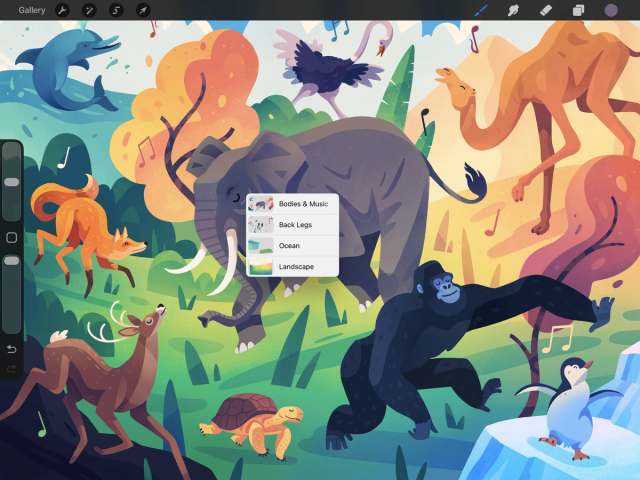

If there is more than one layer on top of other layers in that area, a pop-up panel will appear indicating all the available layers for you to select. Tap the layer you would like to select to continue working on that layer.

This useful shortcut saves you from needing to constantly access the Layers panel.

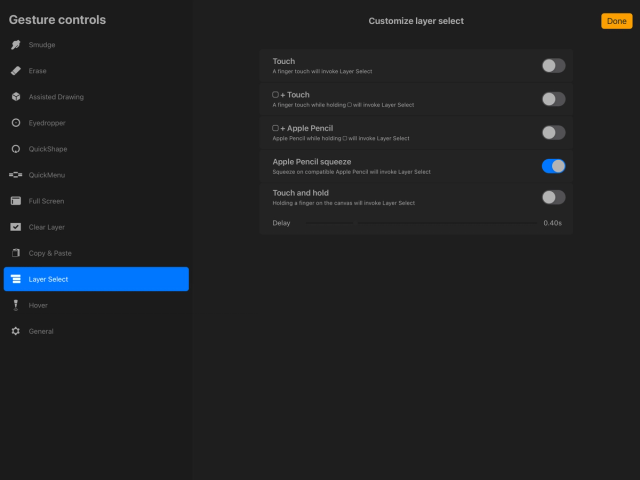

To turn on Layer Select, navigate to Actions > Prefs > Gesture Controls > Layer Select. Here you can set up touch and Apple Pencil shortcuts to integrate Layer Select into your workflow.

To learn more about Layer Select and other layer gesture controls, check out Layer Gestures in the Gestures section of Interface and Gestures in this handbook.

Layer Select with Apple Pencil Pro

Apple Pencil Pro users can assign Layer Select to the squeeze function in Gesture controls. This is a handy way to select layers of an artwork without touching the screen. The haptic feedback will indicate when the squeeze gesture has been successfully initiated.

Group Layers

Combine multiple layers into Groups to keep your artwork tidy and organized.

Create

When you select multiple layers, the Group option will appear on the top right of the Layers panel.

Tap it to gather your selected layers into a Group.

View

Use the arrow at the right of the Group to expand or collapse the group at any time.

Select

Like layers, you can select a Group as a Primary or Secondary selection.

Swipe right to select a Secondary Group. This will behave the same as if you’d selected every layer in that Group.

Tap to select a Primary Group. This allows you to use all Selection and Transform actions. Actions apply to all the layers in a Group at once except for paint, smudge, erase, or using Adjustments.

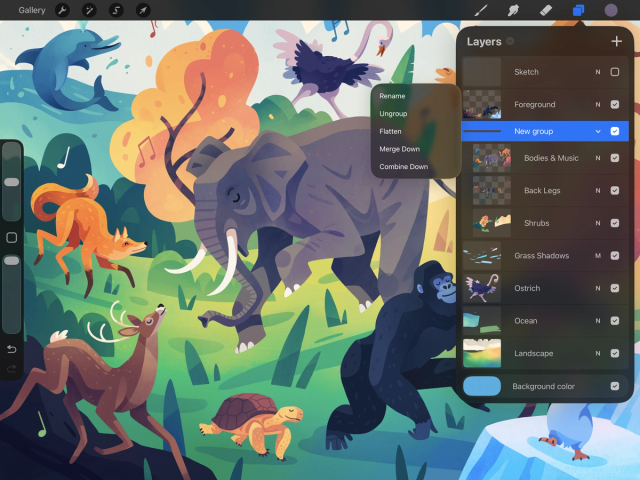

Ungroup

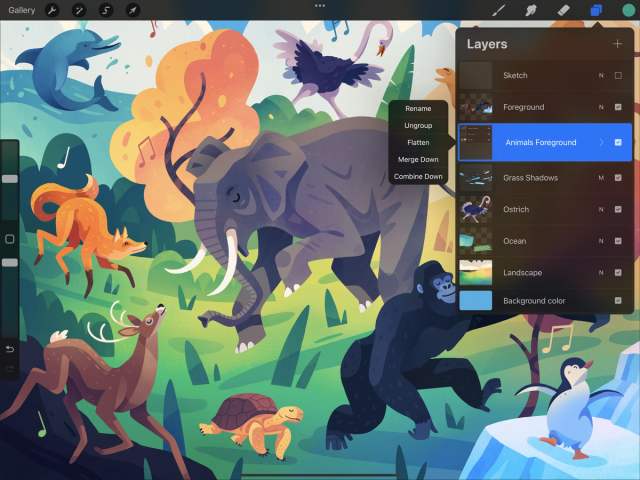

To ungroup, open the Layers Panel and tap the group name. Then tap Ungroup in the pop-up menu. If it is in a hierarchy of groups, the ungrouped layers will move up to the next group.

Move

Drag and Drop layers, layer selections, and groups to reorganize elements within an artwork.

Move Layers and Layer Groups

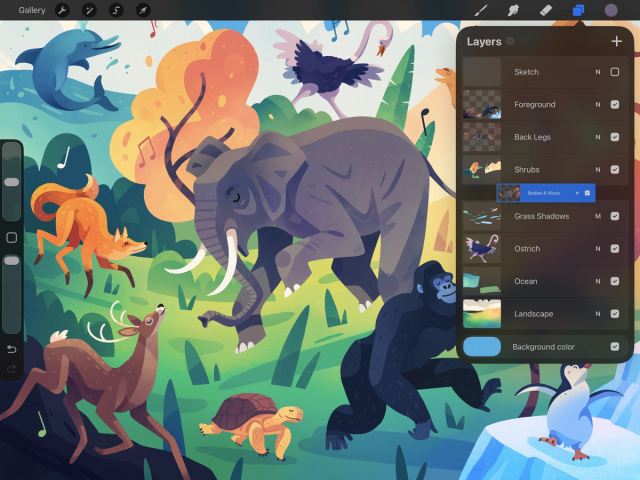

Tap-and-hold a layer or Layer Group to pick it up. Now you can drag it up or down in the layer order. Release it to set the new order.

Move Primary and Secondary Layers

If you have selected Secondary layers (see below), moving the Primary layer will move all Secondary layers with it.

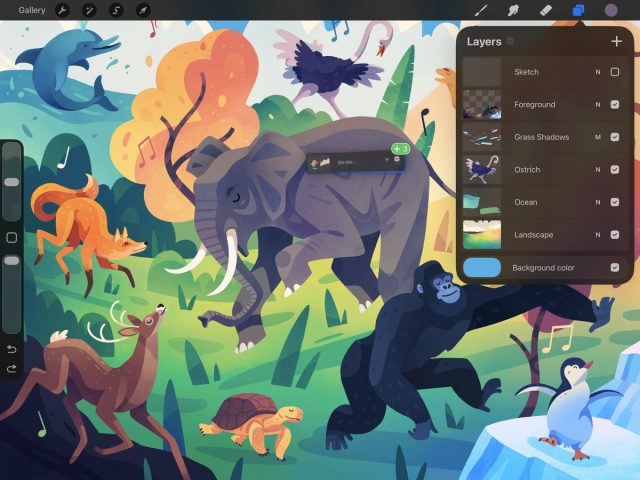

Move Layers Between Canvases

Drag and Drop layers from one canvas to another, or drop them in the Gallery to create new canvases.

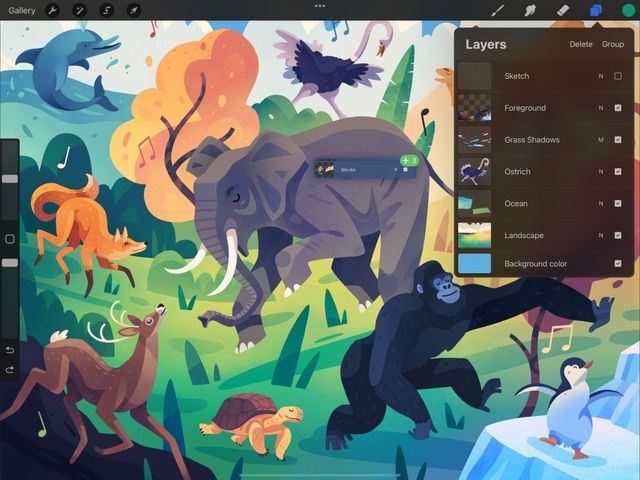

Touch-and-hold to pick up a layer, then tap other layers to pick them up as well. Tap the Gallery button with another finger.

Drop Layers to Create New Canvas

Dropping layers in the Gallery creates a new canvas for each layer you’re holding.

The canvas dimensions will be the same as the dimensions of your origin canvas.

Drop Layers to Add to Existing Canvas

While holding your layers in the Gallery, tap your destination canvas with another finger. Once the canvas loads, open the Layers panel, and drop your layers into the panel.

Layers imported by this method transfer as images, and will not keep Blend Modes, Masks, or other layer-specific data.

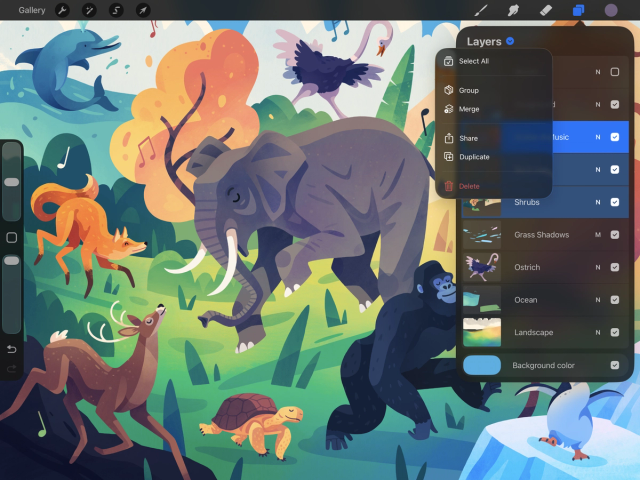

Lock, Duplicate, and Delete Layers

Protect a completed layer from accidental edits with Lock. Reproduce an existing layer with Duplicate. Get rid of unwanted layers using Delete.

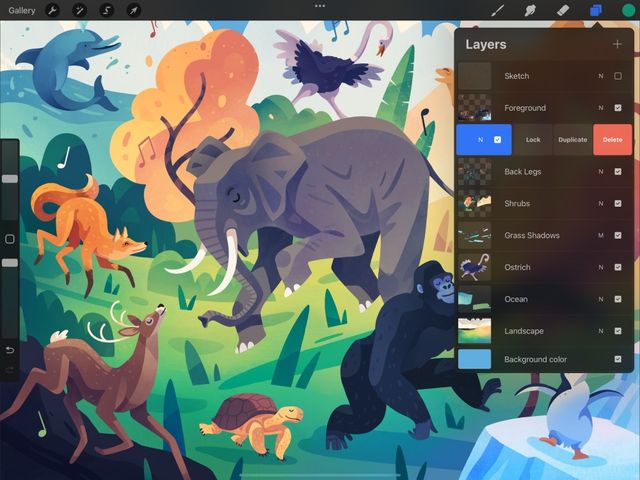

Swipe right-to-left on any layer or Layer Group to reveal buttons for these three commonly used options.

Lock

This function prevents accidental editing of a layer you want to remain untouched.

When you lock a layer, a small padlock symbol appears next to the layer name. To unlock a layer for editing, swipe right-to-left and tap Unlock.

Duplicate

When you Duplicate a layer or Layer Group, all Masks, Blend Modes, and artwork will reproduce from the original.

Duplicating a layer is a great way to experiment with major changes without affecting the original.

Delete

Deleting a layer removes that layer from your artwork.

You can Undo this action. But, once you have run out of undos, or if you leave or background the app, you won't be able to restore the layer or Group.
